Результаты краш-теста Volkswagen Passat

Результаты краш-теста Volkswagen Passat

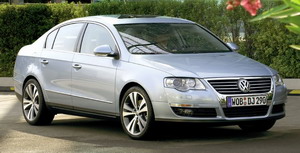

Краш-тест Volkswagen Passat Volkswagen Passat
Модельный год: 2006
Год проведения теста: 2006
Организация, проводившая тест: IIHS (США)

Общий рейтинг:
Лобовой удар со смещением:
Боковой удар:

Легенда:
=Хороший
=Приемлемый
=Посредственный
=Слабый

Volkswagen Passat 2.0T

Вес: 3,435 lbs.
Двигатель: 2.0 L turbocharged 4-cylinder

Комплектация:
» Side airbags: front and rear head curtain airbags and front seat-mounted torso airbags (standard); rear seat-mounted torso airbags (optional)
» Antilock brakes
» Electronic stability control
» Daytime running lights

ЛОБОВОЙ УДАР СО СМЕЩЕНИЕМ
Structure/safety cage Injury measures Restraints/dummy kinematics
Head/neck Chest Leg/foot, left Leg/foot, right
Good Good Good good Good Good

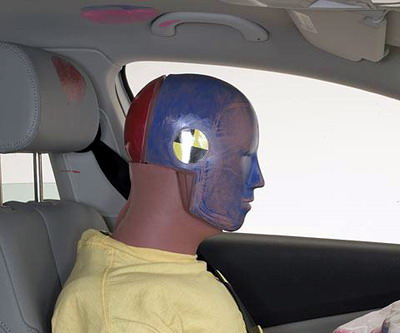

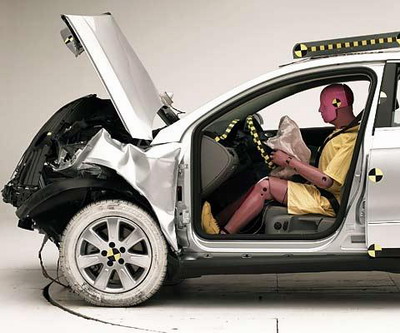

The dummy's position in relation to the steering wheel and instrument panel after the crash test indicates that the driver's survival space was maintained wellSmeared greasepaint above the dummy's head indicates where the head hit the roof rail and grab handle during rebound. Head accelerations from these hits were low

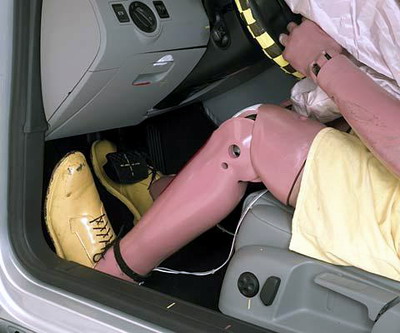

Intrusion into the driver's space was minimal, and all leg and foot injury measures were low

БОКОВОЙ УДАР

  Injury measures Head protection Structure/safety cage
Head/neck Torso Pelvis/leg
Driver Good Good Good Good Good
Rear passenger Good Good Good Good

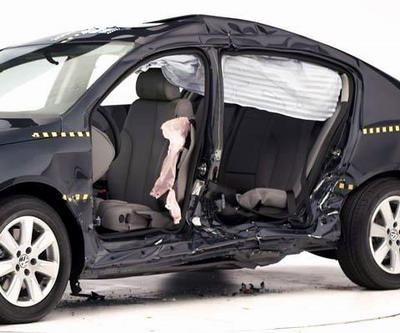

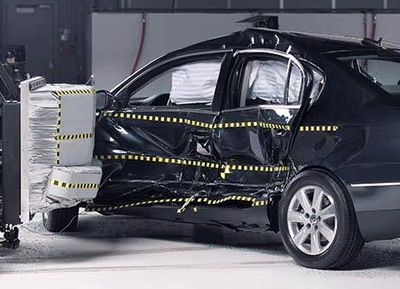

View of the vehicle and barrier just after the crash testView of the vehicle after the crash with doors removed, showing the side airbags and damage to the occupant compartment

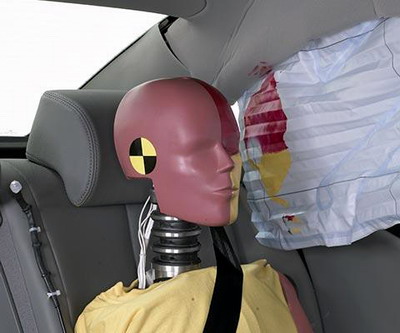

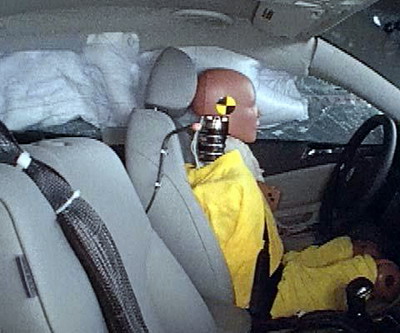

Action shot taken during the side impact crash test showing the driver dummy's head was protected from being hit by hard structures by the side curtain airbagSmeared greasepaint shows where the rear passenger dummy's head was protected by the side airbag
ЛОБОВОЙ УДАР СО СМЕЩЕНИЕМ
    The Volkswagen Passat was redesigned for the 2006 model year.
    The frontal offset crash test ratings also apply to the station wagon version of the Passat, beginning with 2007 models.

Restraints/dummy kinematics

    Dummy movement was well controlled. During rebound, the dummy’s head hit the roof rail and grab handle.

Injury measures

    Measures taken from the dummy indicate a low risk of any significant injuries in a crash of this severity. Head acceleration from the roof rail/grab handle hit was low.

БОКОВОЙ УДАР

    The Volkswagen Passat was redesigned for the 2006 model year.
    The side impact crash test ratings also apply to the station wagon version of the Passat, beginning with 2007 models.

Injury measures

    Driver - Measures taken from the dummy indicate a low risk of any significant injuries in a crash of this severity.
    Rear passenger - Measures taken from the dummy indicate a low risk of any significant injuries in a crash of this severity.

Head protection

    Driver - The dummy's head was protected from being hit by any hard structures, including the intruding barrier, by a side curtain airbag that deployed from the roof.
    Rear passenger - The dummy's head was protected from being hit by any hard structures, including the intruding barrier, by a side curtain airbag that deployed from the roof.
