Краш-тест Toyota Mark II

Модельный год: 1997
Год проведения теста: 1997
В продаже: 08.1997-08.1998
Организация, проводившая тест: NASVA (Япония)

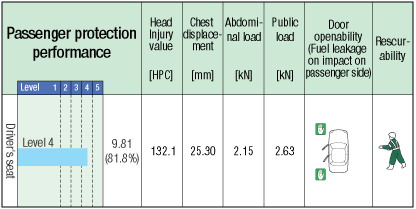

РЕЗУЛЬТАТЫ ТЕСТА:
Injury Risk		Door open-ability	Rescuability		Fuel leakage after the test
Driver	Front seat passenger	Door open-ability	Driver side	Front passenger side	Fuel leakage after the test

Расшифровка условных обозначений

Toyota Mark II 2.0 Grande

Вес: 1,354 кг
Двигатель: 1,988 см³
ABS: Да
Подушка водителя: Да
Подушка переднего пассажира: Да
Боковая подушка: Нет
Преднатяжители ремней: Нет
Ограничители натяжения ремней: Да

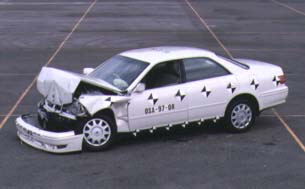

The collision energy was almost completely absorbed within the engine compartment. There was deformation in the footwell area of both the driver's and passenger's seats in the occupant compartment, however the level of deformation was fairly minimal. Deformation of the body caused fairly significant shifting of the seats after the collision.
The dummies were securely restrained and their posture were scarcely changed after the test.

Note: The pictures at the moment of collision in the safety performance tests against frontal collisions have nothing to do with the size of injury values.
The picture of the side view of the dummies taken after the test of the safety performance against frontal collision shows the positional relations between the instrument panel and the dummies (mainly the lower half of the bodies).

Модельный год: 1998
Год проведения теста: 1998
В продаже: 04.1997
Организация, проводившая тест: NASVA (Япония)

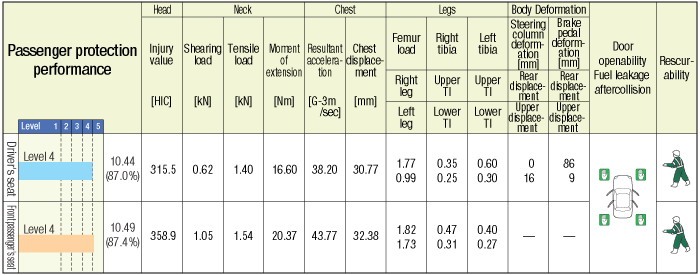

РЕЗУЛЬТАТЫ ТЕСТА:
Injury Risk		Door open-ability	Rescuability		Fuel leakage after the test
Driver	Front seat passenger	Door open-ability	Driver side	Front passenger side	Fuel leakage after the test

Расшифровка условных обозначений

Toyota Mark II Wagon Qualis

Вес: 1,543 кг
Двигатель: 2,496 см³
ABS: Да
Подушка водителя: Да
Подушка переднего пассажира: Да
Боковая подушка: Нет
Преднатяжители ремней: Да
Ограничители натяжения ремней: Да

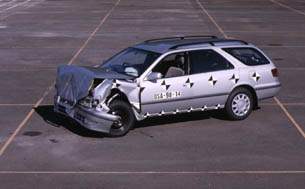

The collision energy was almost completely absorbed within the engine compartment. There was comparatively small deformation in the footwell area of both driver and passenger.
The dummies remained securely restrained, and their posture was hardly changed after the collision.

Модельный год: 2001
Год проведения теста: 2001
В продаже: с 10.2000
Организация, проводившая тест: NASVA (Япония)

Toyota Mark II Grande

Вес: 1380 кг
Двигатель: 1988 см³

Комплектация:
ABS: Да
Подушка водителя: Да
Подушка переднего пассажира: Да
Боковая подушка: Нет
Преднатяжители ремней: Да
Ограничители натяжения ремней: Да
