Результаты краш-теста Suzuki Grand Vitara

Результаты краш-теста Suzuki Grand Vitara

Краш-тест Suzuki Grand Vitara Suzuki Grand Vitara
Модельный год: 2006-08
Дата проведения теста: 08.2008
Организация, проводившая тест: IIHS (США)

Общий рейтинг:
Лобовой удар со смещением:
Боковой удар:

Легенда: (уровень защиты)
=Хороший
=Приемлемый
=Посредственный
=Слабый

2008 Suzuki Grand Vitara 4wd

Вес: 1686 кг.
Двигатель: 2.7 L V6

Комплектация:
» Side airbags: front and rear head curtain airbags and front seat-mounted torso airbags
» Electronic stability control
» Antilock brakes
» Daytime running lights

ЛОБОВОЙ УДАР СО СМЕЩЕНИЕМ
Каркас безопасности Защита Restraints/dummy kinematics
Голова/шея Грудь Нога, лев. Нога, прав.

The dummy's position in relation to the steering wheel and instrument panel after the crash test indicates that the driver's survival space was maintained wellThe dummy's head came very close to the B-pillar during rebound but did not hit it

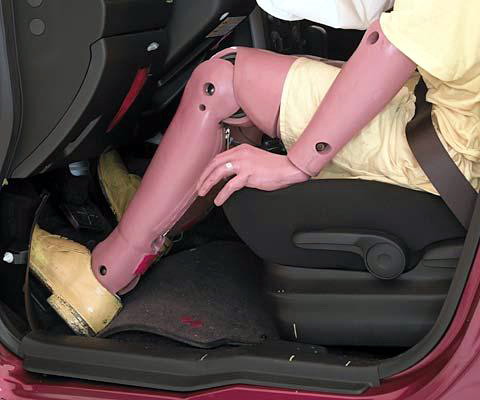

Intrusion into the driver's space was minimal, and all leg and foot injury measures were low

БОКОВОЙ УДАР
  Injury measures Head protection Structure/safety cage
Head/neck Torso Pelvis/leg
Driver
Rear passenger

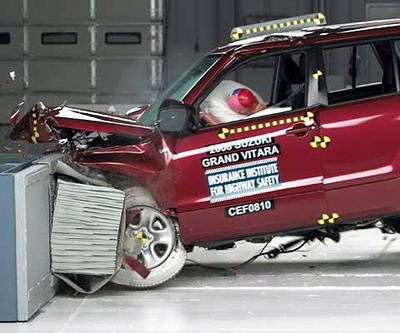

View of the vehicle and barrier just after the crash testView of the vehicle after the crash with doors removed, showing the side airbags and damage to the occupant compartment

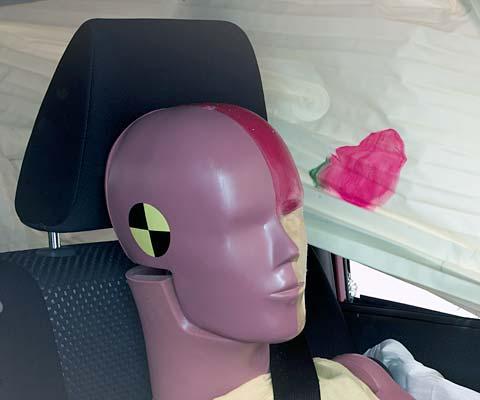

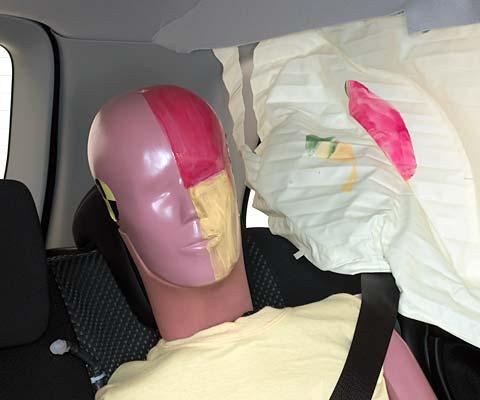

Smeared greasepaint shows where the driver dummy's head was protected from being hit by hard structures by the side curtain airbagSSmeared greasepaint shows where the rear passenger dummy’s head was protected by the side airbag

ЛОБОВОЙ УДАР СО СМЕЩЕНИЕМ

    The Suzuki Grand Vitara was redesigned for the 2006 model year.

Restraints/dummy kinematics

    Dummy movement was well controlled. During rebound, the dummy's head approached but did not hit the B-pillar.

Injury measures

    Measures taken from the dummy indicate a low risk of any significant injuries in a crash of this severity.

БОКОВОЙ УДАР

Injury measures

    Driver — Measures taken from the dummy indicate that a fracture of the pelvis would be possible in a crash of this severity. The risk of significant injuries to other body regions is low.
    Rear passenger — Measures taken from the dummy indicate a low risk of any significant injuries in a crash of this severity.

Head protection

    Driver — The dummy’s head was protected from being hit by any hard structures, including the intruding barrier, by a side curtain airbag that deployed from the roof.
    Rear passenger — The dummy’s head was protected from being hit by any hard structures, including the intruding barrier, by a side curtain airbag that deployed from the roof.
