Результаты краш-теста Scion xd

Результаты краш-теста Scion xd

Краш-тест Scion xB Scion xB
Модельный год: 2008
Год проведения теста: 11.2007
Организация, проводившая тест: IIHS (США)

Общий рейтинг:
Лобовой удар со смещением:
Боковой удар:

Легенда:
=Хороший =Приемлемый =Посредственный =Слабый

Scion xD

Вес: 2,635 lbs.
Двигатель: 1.8 L 4-cylinder

Комплектация:
» Side airbags: front and rear head curtain airbags and front seat-mounted torso airbags
» Electronic stability control (optional)
» Antilock brakes

ЛОБОВОЙ УДАР СО СМЕЩЕНИЕМ
Каркас безопасности Защита Restraints/dummy kinematics
Голова/шея Грудь Нога, лев. Нога, прав.

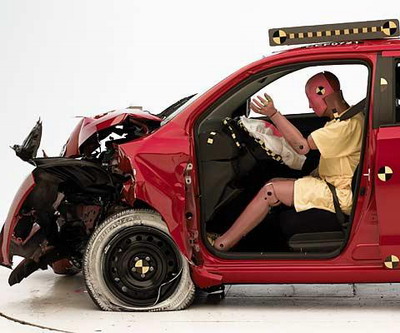

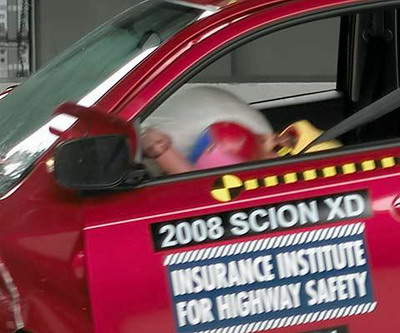

The dummy's position in relation to the steering wheel and instrument panel after the crash test indicates that the driver's survival space was maintained very wellHigh forces on the neck and chest occurred when the dummy's head moved into the airbag

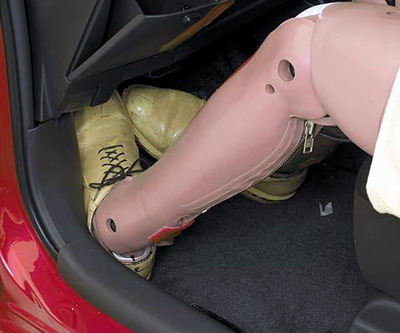

Intrusion into the driver's space was minimal, and all leg and foot injury measures were low

БОКОВОЙ УДАР

  Защита Голова Каркас безопасности
Голова/шея Туловище Таз/нога
Водитель
Задний пассажир

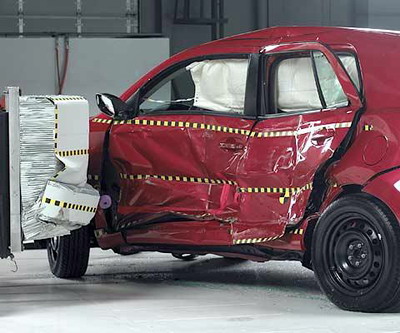

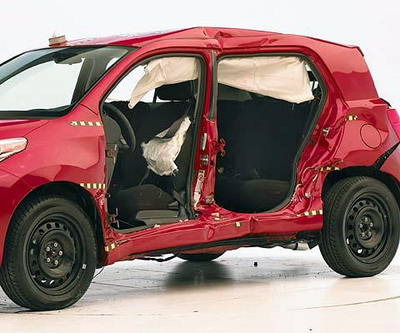

View of the vehicle and barrier just after the crash testView of the vehicle after the crash with doors removed, showing the side airbags and damage to the occupant compartment

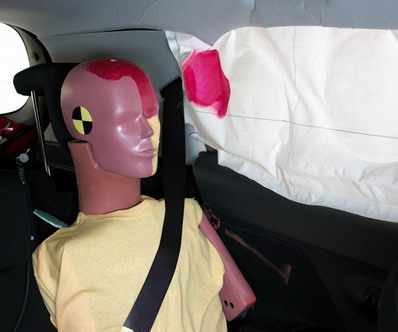

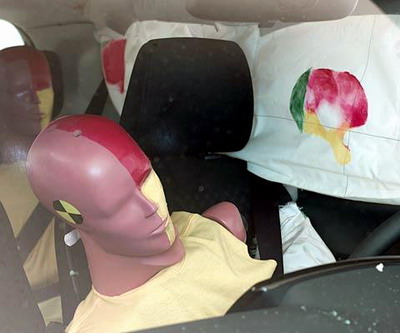

Smeared greasepaint shows where the driver dummy's head was protected from being hit by hard structures by the side curtain airbagSmeared greasepaint shows where the rear passenger dummy’s head was protected by the side airbag
ЛОБОВОЙ УДАР СО СМЕЩЕНИЕМ
    The Scion xD was introduced in the 2008 model year.

Restraints/dummy kinematics

    Dummy movement was well controlled. During rebound, the dummy's head hit the roof rail.

Injury measures

    Measures taken from the head and both legs indicate low risk of injuries to these body regions in a crash of this severity. Forces on the neck and chest when the dummy moved forward into the airbag indicate that injuries to these parts of the body would be possible. Head acceleration from the roof rail hit was low.

БОКОВОЙ УДАР

Injury measures

    Driver - Measures taken from the dummy indicate a low risk of any significant injuries in a crash of this severity.
    Rear passenger - Measures taken from the dummy indicate a low risk of any significant injuries in a crash of this severity.

Head protection

    Driver - The dummy's head was protected from being hit by any hard structures, including the intruding barrier, by a side curtain airbag that deployed from the roof.
    Rear passenger - The dummy's head was protected from being hit by any hard structures, including the intruding barrier, by a side curtain airbag that deployed from the roof.
