Краш-тест Mahindra Pik-Up

Краш-тест Mahindra Pik-Up

Краш-тест Mahindra Pik-Up Mahindra Pik-Up
Модельный год: 2007
Год проведения теста: 26.03.2008
Организация, проводившая тест: ANCAP
Фронтальный тест 3.44
Боковой тест 16
Боковой тест, столб -
СНРБ -
Защита пешеходов 6.89
Защита детей -
ОБЩАЯ ОЦЕНКА 16.49

Общий рейтинг
Защита пешеходов
Защита детей

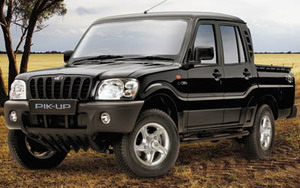

Mahindra Pik-Up
Variant: Dual Cab 4X4
Kerb Weight: 2150 kg
Year: 2007
Engine: 2.5 Turbo Diesel
Category: Utility
Airbags: No airbags

    MODEL HISTORY & SAFETY :: The tested model of Mahindra Pik-up was introduced in Australia during 2007. The Pik-up has minimal safety features. ABS brakes are optional. The Australian distributor advises that driver and passenger airbags will become available during 2008. There are no top tether anchorages for child restraints so this vehicle is unsuitable for transporting children under the age of four (it is recommended that these children be in an approved child seat or infant capsule - both of which need a top tether anchorage). The distributor advises that this will be addressed during 2009.

  Offset Crash Test
64km/h
Side Impact Crash Test
50km/h
  Driver Pass. Driver
HEAD
  HIC 477 285 None
  Acceleration 69.4 40.7 None
NECK
  Shear 0.92 0.95 None
  Tension 2.07 1.63 None
  Extension 6.9 10 None
CHEST
  Acceleration 36.5 36.7 None
  Compression 43 46.9 None
  Viscous Criterion 0.24 0.29 None
ABDOMEN
  Force None None None
PELVIS
  Force None None None
UPPER LEGS
  Force Left 2.67 0.64
  Force Right 3.27 1.63
  Knee Displ. Left 1.46 0.46
  Knee Displ. Right 0.45 0.87
LOWER LEGS
  Force Left 3.73 1.67
  Force Right 4.77 2.45
  Index Left (Up/Low) 0.81/0.71 0.28/0.12
  Index Right (Up/Low) 0.77/1.51 0.47/0.45
MODIFIERS - OFFSET TEST SCORES
Head Steering column movement 1 pt deduction
Chest   No deduction
Upper Leg Variable & Conc. loading Driver & Passenger 2 pt deduction L&R; 1 pt deduction R
Lower Leg Pedal upward movement 1 pt deduction
Foot Score Pedal rearward movement Zero points
MODIFIERS - SIDE IMPACT TEST SCORES
Head Default score awarded None
Chest   None
Upper Leg   None
Lower Leg   None
Foot Score   None

    OVERALL EVALUATION :: 2 Stars. The Mahindra Pik-up scored 3.44 out of 16 in the offset crash test. The passenger compartment held its shape reasonably well, except for steering column, footwell and pedal intrusion. Protection from serious leg injury was poor for the driver. Chest protection was weak for the driver and passenger. Driver head protection was also weak. The vehicle was awarded a default score of 16 out of 16 in the side impact crash test. However, the low offset score meant that the vehicle was limited to a 2 star rating and an overall score of 16.49 (the maximum available for a 2 star rating).
    FRONTAL IMPACT :: Body region scores out of 4 points each: Head/neck 1 pts, chest 0.44 pts, upper legs 2 pts, lower legs zero pts.
    The passenger compartment held its shape reasonably well in the offset crash test. However, the brake pedal moved rearwards by 223 mm and upwards 107 mm. The steering wheel hub moved 53 mm rearward, 141 mm upward and 23 mm sideways. The front ("A") pillar moved 84 mm rearwards. All doors remained closed during the crash. After the crash the driver’s door could be opened with high manual effort. The driver's head hit the hub of the steering wheel. Steering column and dash components were a potential source of injury for the driver's knees. The dash was a hazard for the passenger's right knee.
    SIDE IMPACT :: Body region scores out of 4 points each: Head 4 pts, chest 4 pts, abdomen 4 pts, pelvis 4 pts. The side impact test normally used by ANCAP simulates a small car striking the driver's door of the vehicle under test. It is based on a regulation test but the regulation does not apply to vehicles with a high seat height like the Pik-up. Experience shows that such vehicles can be expected to perform well in this test so ANCAP has decided to award full score for these vehicles instead of conducting a crash test.
    PEDESTRIAN PROTECTION :: Like many vehicles of this type, a poor result for the Pik-up. The child zones scored particularly poorly, and the leg results were uniformly poor. The adult zones scored well in the middle of the bonnet but the top edge of the bonnet received partial points only.
- Child head impacts 0.32
- Adult head impacts 6.57
- Upper leg impacts Zero
- Lower leg impacts Zero
- Total (out of 36) 6.89
