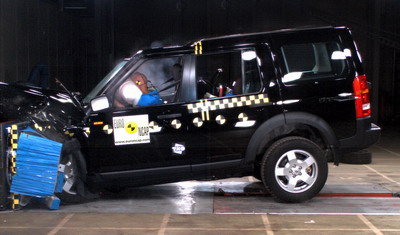

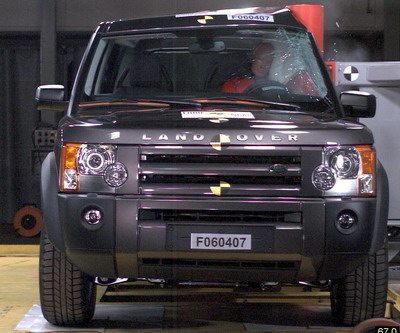

TEST RESULTS IN FULL
|
|

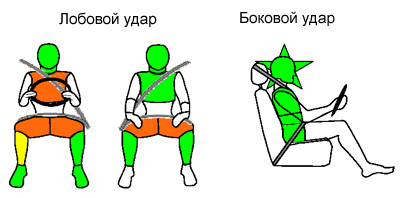

FRONTAL IMPACT HEAD
|
|
Driver airbag contact
|
stable
|
|
Passenger airbag contact
|
stable
|
|
Steering Wheel
|
|
|
rearward displacement
|
none
|
|
upward displacement
|
none
|
|
lateral displacement
|
11 mm to the right
|
|
FRONTAL IMPACT CHEST
|
|
Contact with steering wheel
|
none
|
|
Screen pillar rearward
|
11 mm
|
|
Passenger compartment integrity
|
stable
|
|

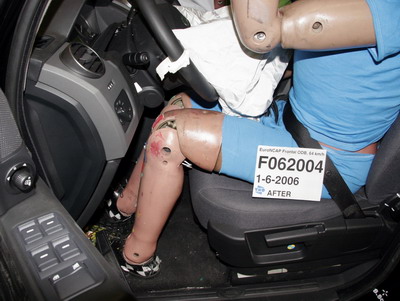

FRONTAL IMPACT UPPER LEGS, KNEES AND PELVIS
|
|
Stiffer structures present
|
yes: steering column locking mechanism; column adjuster lever; glove-box lid.
|
|
Concentrated knee loading
|
yes: steering column locking mechanism; column adjuster lever; glove-box lid.
|
|
FRONTAL IMPACT LOWER LEGS, KNEES AND ANKLES
|
|
Rearward pedal displacement
|
accelerator - 44 mm
|
|
Upward pedal displacement
|
brake - 5 mm
|
|
Footwell rupture
|
none
|
|
SIDE IMPACT AIRBAGS
|
|
Head protection airbag
|
yes
|
|
Torso protection airbag
|
yes
|
|

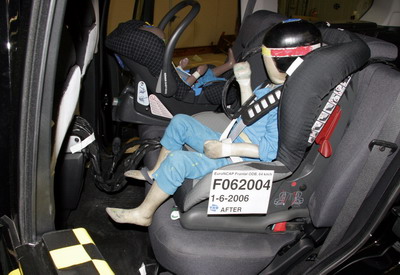

CHILD PROTECTION
|
|
Restraints used
|
|
|
18 month old
|
Britax-Rцmer BabySafe ISOFIX Plus, rearward-facing using support frame fitted to ISOFIX anchorages
|
|
3 year old
|
Britax-Rцmer Duo Plus, forward-facing using ISOFIX anchorages and top-tether
|
|
CHILD RESTRAINTS FRONTAL IMPACT
|
|
Airbag disabling/warning label
|
Non-permanent pictogram at end of facia; pictogram-only label on sun-visors
|
|
Forward head movement
|
|
18 mth old (behind passenger)
|
protected
|
|
3 year old (behind driver)
|
protected
|
|
Chest Protection
|
|
18 mth old: total load
|
good
|
|
18 mth old: vertical load
|
good
|
|
3-year-old: total load
|
fair
|
|
3-year-old: vertical load
|
good
|
|
CHILD RESTRAINTS SIDE IMPACT
|
|
Head protection
|
|
18 mth old (struck side)
|
protected
|
|
3 year old (non-struck side)
|
protected
|
|
Head acceleration
|
|
18 mth old
|
good
|
|
3 year old
|
good
|
