Краш-тест Jeep Wrangler

Краш-тест Jeep Wrangler

Jeep Wrangler Jeep Wrangler
Модельный год: 2007-08
Год проведения теста: 08.2008
Организация, проводившая тест: IIHS (США)

Общий рейтинг:
Лобовой удар со смещением:
Боковой удар:

Легенда: (уровень безопасности)
=Хороший
=Приемлемый
=Посредственный
=Слабый

Jeep Wrangler Unlimited Sahara 4-door 4wd (2008)

Вес: 1986 кг.
Двигатель: 3.8 L V6

Комплектация:
» Side airbags: front seat-mounted combination head and torso airbags (optional)
» ABS (optional)
» Electronic stability control

ЛОБОВОЙ УДАР СО СМЕЩЕНИЕМ
Структура кузова Уровень защиты Restraints/dummy kinematics
Голова/шея Грудь Голень/стопа, левая Голень/стопа, правая

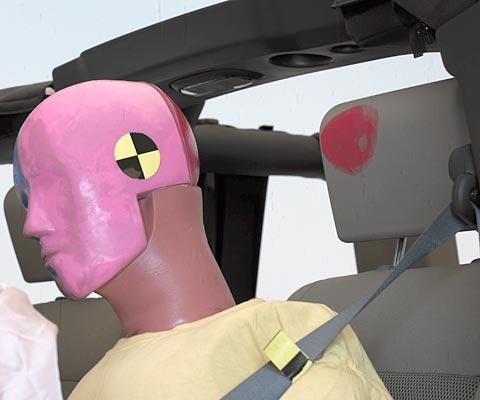

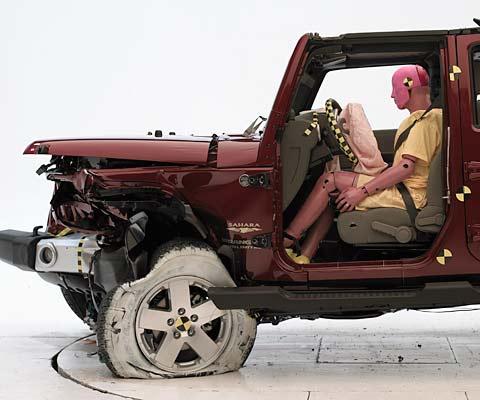

The dummy's position in relation to the steering wheel and instrument panel after the crash test indicates that the driver's survival space was maintained wellDummy movement was well controlled. During rebound, the dummy's head hit only the head restraint, as indicated by smeared greasepaint
Forces on the lower right leg were just high enough to indicate the possibility of injury

БОКОВОЙ УДАР

  Injury measures Head protection Structure/safety cage
Head/neck Torso Pelvis/leg
Driver
Rear passenger

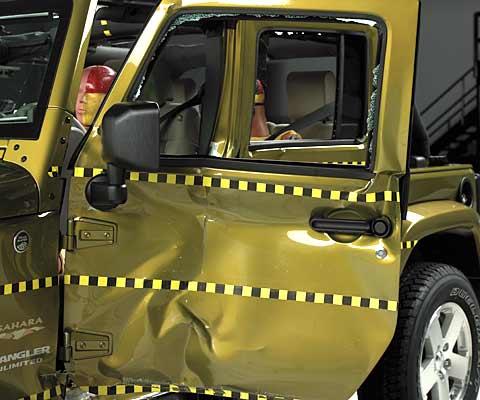

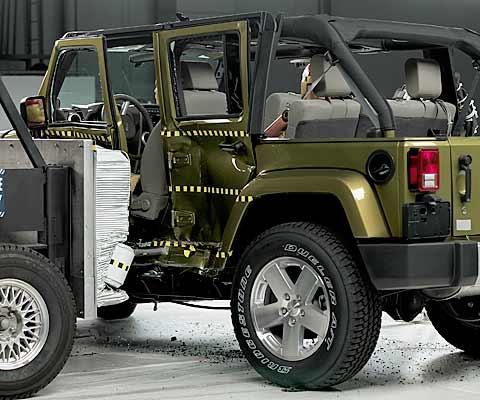

View of the vehicle and barrier just after the crash testView of the vehicle after the crash showing the open driver door after the barrier was moved away

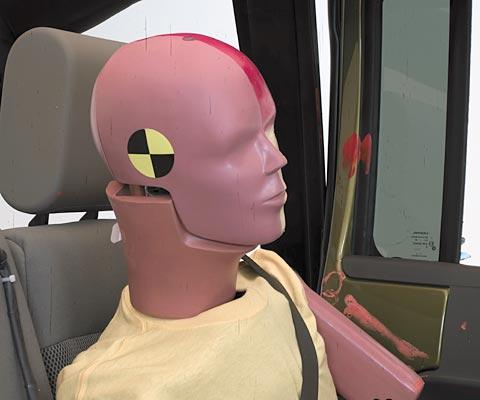

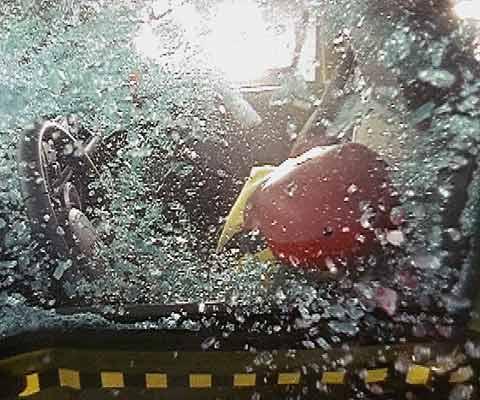

Action shot taken during the side impact crash test showing the driver dummy's head leaning well outward and approaching the window sill. The broken glass is from the window of the driver doorSmeared red greasepaint shows where the rear passenger dummy's head was hit by the rear door window frame
ЛОБОВОЙ УДАР СО СМЕЩЕНИЕМ

    The Jeep Wrangler was redesigned for the 2007 model year, and a larger, heavier 4-door model was added for the first time.
    During the crash, the driver door opened. This opening didn't significantly affect dummy movement during the test but shouldn't happen because, in some crashes, it could allow partial or complete occupant ejection, especially if the occupant is unbelted. This door opening resulted in a structure rating downgrade from good to acceptable.

Restraints/dummy kinematics

    Dummy movement was well controlled. After the dummy moved forward into the airbag, it rebounded into the seat without its head coming close to any stiff structure that could cause injury.

Injury measures

    Measures taken from the head, neck, and chest indicate low risk of injuries to these body regions in a crash of this severity. Forces on the right tibia indicate that injuries to the lower leg would be possible.

БОКОВОЙ УДАР

Injury measures

    Driver - Measures taken from the dummy indicate that rib fractures and/or internal organ injuries would be likely in a crash of this severity. The risk of significant injuries to other body regions is low.
    Rear passenger - Measures taken from the dummy indicate a low risk of any significant injuries in a crash of this severity.

Head protection

    Driver - Although the intruding barrier did not hit the dummy's head in this test, the head was not protected from contacts outside the vehicle. This indicates that only slightly different crash circumstances could produce a direct hit to a person's head.
    Rear passenger - The dummy's head was hit primarily by the window frame of the rear passenger door. This impact did not produce high head injury measures, but the head protection is inadequate.
