Общий рейтинг:
Лобовой удар со смещением:
Боковой удар:
Боковой удар:

Легенда: (уровень безопасности)
=Хороший
=Приемлемый
=Посредственный
=Слабый

Вес: 1552 кг.
Двигатель: 2.4 L 4-cylinder

Комплектация:
» Боковые подушки: front and rear head curtain airbags (standard) and front seat-mounted torso airbags (optional)
» ESP
» ABS
» Daytime running lights (optional on fleet vehicles only)

Структура кузова	Уровень защиты				Restraints/dummy kinematics
	Голова/шея	Грудь	Голень/стопа, левая	Голень/стопа, правая

БОКОВОЙ УДАР
с занавесками (стандарт), передняя подушка для защиты туловища (опция)

	Injury measures			Head protection	Structure/safety cage
	Head/neck	Torso	Pelvis/leg
Driver
Rear passenger

БОКОВОЙ УДАР
без передней подушки для защиты туловища

	Injury measures			Head protection	Structure/safety cage
	Head/neck	Torso	Pelvis/leg
Driver
Rear passenger

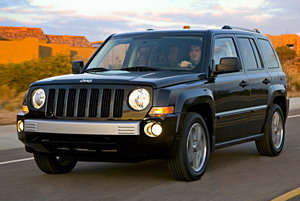

    The Jeep Patriot was introduced in the 2007 model year.

Restraints/dummy kinematics

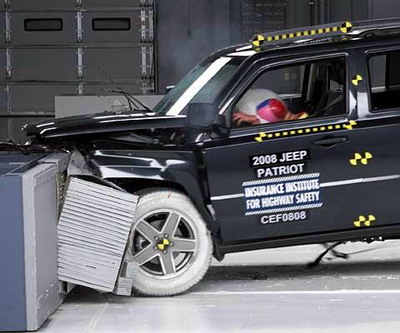

    Dummy movement was well controlled. During rebound, the dummy's head hit the roof rail and B-pillar.

Injury measures

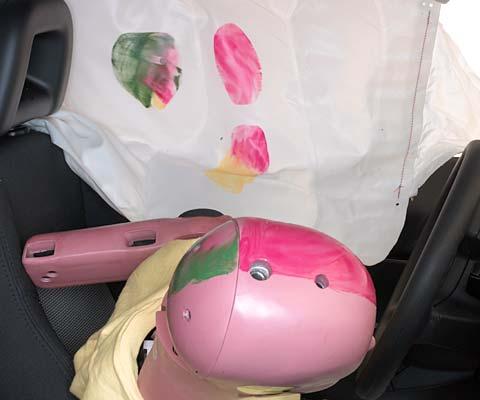

    Measures taken from the neck and chest indicate low risk of injuries to these body regions in a crash of this severity. A high head acceleration occurred when the dummy's head hit the steering wheel through the airbag, indicating that head injuries would be possible. Forces on the right tibia indicate that injuries to the lower leg would also be possible. Head accelerations from the roof rail and B-pillar hits were low.

Injury measures

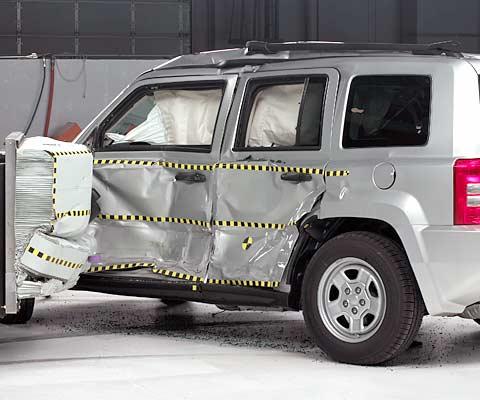

    Driver - Measures taken from the dummy indicate that rib fractures would be possible in a crash of this severity. The risk of significant injuries to other body regions is low.
    Rear passenger - Measures taken from the dummy indicate that loading to the shoulder was excessive. The risk of significant injuries to other body regions is low.

Head protection

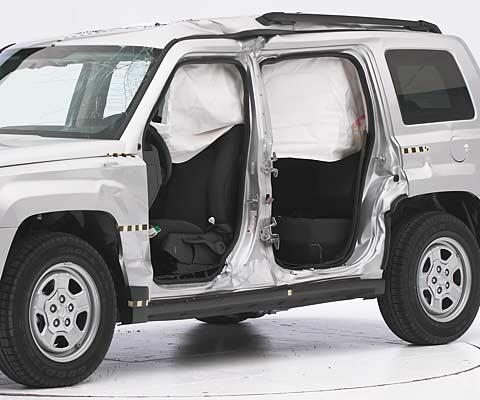

    Driver - The dummy’s head was protected from being hit by any hard structures, including the intruding barrier, by a side curtain airbag that deployed from the roof and a side airbag that deployed from the seat.

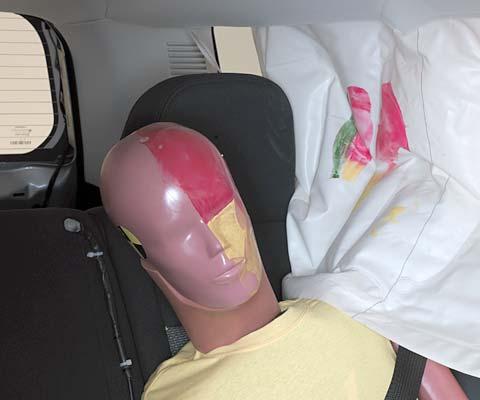

    Rear passenger - The dummy’s head was protected from being hit by any hard structures, including the intruding barrier, by a side curtain airbag that deployed from the roof.

Injury measures

    Driver - Measures taken from the dummy indicate that rib fractures and/or internal organ injuries would be likely in a crash of this severity. In addition, loading to the shoulder was excessive.
    Rear passenger - Measures taken from the dummy indicate a low risk of any significant injuries in a crash of this severity.

Head protection

    Driver - The dummy’s head was protected from being hit by any hard structures, including the intruding barrier, by a side curtain airbag that deployed from the roof.
    Rear passenger - The dummy’s head was protected from being hit by any hard structures, including the intruding barrier, by a side curtain airbag that deployed from the roof.
