Модельный год: 2008
Дата проведения теста: 28.05.2008
Организация, проводившая тест: EuroNCAP

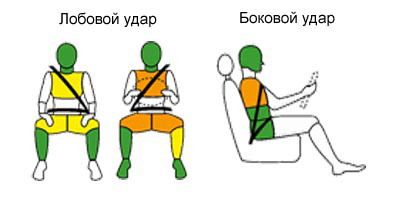

Фронтальный тест
|
|
Боковой тест
|
|
СНРБ
|
|
Боковой тест, столб
|
-
|
Защита пешеходов
|
|
Защита детей
|
|
ОБЩАЯ ОЦЕНКА
|
|
|

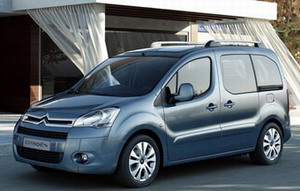

Citroen Berlingo

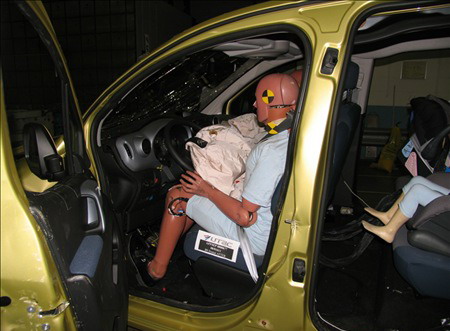

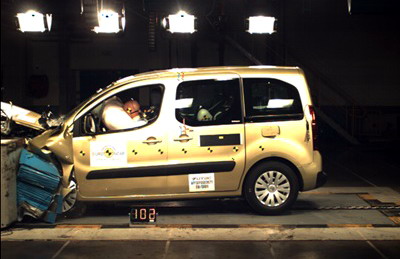

FRONT IMPACT :: The passenger compartment remained stable in the impact. Structures in the dashboard presented a risk of injury to the knees and femurs of the driver and
passenger.
SIDE IMPACT :: A head-protecting airbag is not available so a pole test was not done.
CHILD-PROTECTION :: The Berlingo has a switch to deactivate the passenger's airbag to allow a rearward-facing child restraint to be used in that seating position.
However, information provided to the driver regarding the status of the airbag did not meet Euro NCAP's requirements. The presence of ISOFIX and top-tether anchorages in the rear outboard
seats was not clearly marked.
PEDESTRIAN PROTECTION :: The bonnet surface and its front edge were rated as predominantly poor for the protection they offered to the head and legs of a struck
pedestrian.
|
|
БЕЗОПАСНОСТЬ ДЕТЕЙ
|
Детское кресло, 1,5 года
|
Romer Baby safe
|
Установка по направлению движения
|
лицом назад
|
Детское кресло, 3 года
|
Romer Duo Plus
|
Установка по направлению движения
|
лицом вперед
|
АВТОМОБИЛЬ
|
Тип кузова
|
-
|
Год выпуска
|
2008
|
Вес, кг
|
-
|
VIN тестируемого автомобиля
|
-
|
ОСНАЩЕНИЕ СИСТЕМАМИ БЕЗОПАСНОСТИ
|
Преднатяжители передних ремней безопасности
|
|
Система ограничения нагрузки передних ремней безопасности
|
|
Подушка безопасности водителя
|
|
Подушка безопасности переднего пассажира
|
|
Боковая подушка безопасности для защиты туловища
|
|
Боковая подушка безопасности для защиты головы
|
|
Подушка безопасности для защиты коленей водителя
|
|
|
|
|
|
Модельный год: 2005
Год проведения теста: 11.2005
Организация, проводившая тест: EuroNCAP
Фронтальный тест
|
|
Боковой тест
|
|
СНРБ
|
|
Боковой тест, столб
|
|
Защита пешеходов
|
|
Защита детей
|
|
ОБЩАЯ ОЦЕНКА
|
|
|

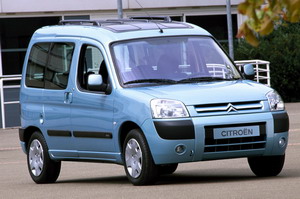

Citroen Berlingo Multispace 1.6D

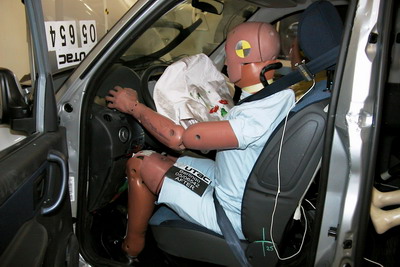

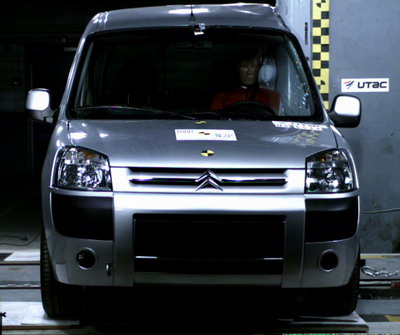

FRONT IMPACT :: The driver's chest contacted the steering wheel, for which the car was penalised. The passenger's left knee registered higher loads than the driver's
knees and was used in the calculation of the adult occupant score. Structures within the dashboard represented a potential hazard to the knees and femurs of both driver and passenger.
SIDE IMPACT :: In the side impact, forces were transferred in an unrealistic manner to the test dummy, reducing the forces recorded by the instrumentation in its chest.
The car was penalised for this.
CHILD-PROTECTION :: The label warning against using a rearward-facing child restraint in the front passenger's seat was inadequate and was not permanently attached to the
vehicle. The presence of the ISOFIX anchorages in the rear seats was not clearly indicated.

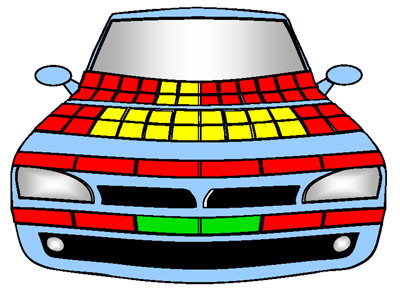

PEDESTRIAN PROTECTION :: The leading edge of the bonnet scored no points for the protection it offered to pedestrians.
SAFETY EQUIPMENT :: Driver and passenger front airbags; front seat-belt pre-tensioners with loadlimiters; driver's seat-belt reminder; combined thorax/head-protecting
side impact airbag; lower ISOFIX anchorages in rear centre and rear right seats; ABS.
COMMENTS :: The manufacturer states that the Peugeot Partner (from VIN 1PM5: 95189560) is built on the same platform as the Berlingo and shares the same specification.
|
БЕЗОПАСНОСТЬ ДЕТЕЙ
|
Детское кресло, 1,5 года
|
Britax-Romer Baby-Safe Universal
|
Установка по направлению движения
|
лицом назад
|
Детское кресло, 3 года
|
Kiddy-Life Universal
|
Установка по направлению движения
|
лицом вперед
|
АВТОМОБИЛЬ
|
Тип кузова
|
минивен, 5-дв.
|
Год выпуска
|
2005
|
Вес, кг
|
1251
|
VIN тестируемого автомобиля
|
1CM5 : 93303010
|
ОСНАЩЕНИЕ СИСТЕМАМИ БЕЗОПАСНОСТИ
|
Преднатяжители передних ремней безопасности
|
|
Система ограничения нагрузки передних ремней безопасности
|
|
Подушка безопасности водителя
|
|
Подушка безопасности переднего пассажира
|
|
Боковая подушка безопасности для защиты туловища
|
|
Боковая подушка безопасности для защиты головы
|
|
Подушка безопасности для защиты коленей водителя
|
|
ISOfix, переднее сидение
|
|
ISOfix, задние сидения
|
|
|
TEST RESULTS IN FULL
|
FRONTAL IMPACT HEAD
|
Driver airbag contact
|
stable
|
Passenger airbag contact
|
stable
|
Steering Wheel
|
rearward displacement
|
28 mm
|
upward displacement
|
33 mm
|
lateral displacement
|
28 mm to the left
|
FRONTAL IMPACT CHEST
|
Contact with steering wheel
|
yes
|
Screen pillar rearward
|
42 mm
|
Passenger compartment integrity
|
stable
|
FRONTAL IMPACT UPPER LEGS, KNEES AND PELVIS
|
Stiffer structures present
|
yes: end of facia bracket, column shroud and adjuster lever, ignition barrel.
|
Concentrated knee loading
|
yes: end of facia, centre console and airbag module on passenger's side
|
FRONTAL IMPACT LOWER LEGS, KNEES AND ANKLES
|
Rearward pedal displacement
|
clutch - 94 mm
|
Upward pedal displacement
|
none
|
Footwell rupture
|
none
|
SIDE IMPACT AIRBAGS
|
Head protection airbag
|
yes (combined with torso airbag)
|
Torso protection airbag
|
yes
|

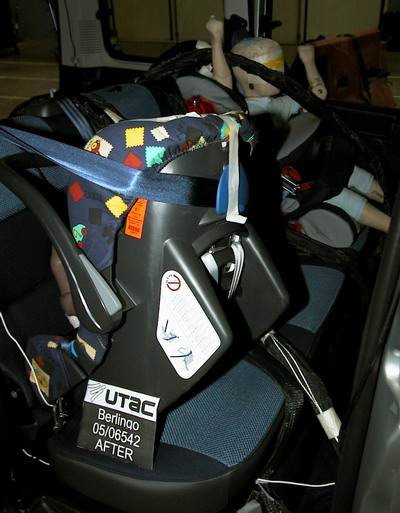

CHILD PROTECTION
|
Restraints used
|
|
18 month old
|
Britax-Romer Baby-Safe Universal, rearward-facing
|
3 year old
|
Kiddy-Life Universal, forward-facing
|
CHILD RESTRAINTS FRONTAL IMPACT
|
Airbag disabling/warning label
|
Non-permanent label on inside of sunvisor
|
Forward head movement
|
18 mth old (behind passenger)
|
protected
|
3 year old (behind driver)
|
protected
|
Chest Protection
|
18 mth old: total load
|
good
|
18 mth old: vertical load
|
good
|
3-year-old: total load
|
fair
|
3-year-old: vertical load
|
good
|
CHILD RESTRAINTS SIDE IMPACT
|
Head protection
|
18 mth old (struck side)
|
protected
|
3 year old (non-struck side)
|
vulnerable
|
Head acceleration
|
18 mth old
|
good
|
3 year old
|
good
|
|
