Краш-тест Audi A3

Краш-тест Audi A3

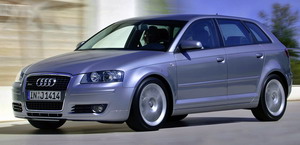

Краш-тест Audi A3 Audi A3
Модельный год: 2006
Год проведения теста: 03.2006
Организация, проводившая тест: IIHS (США)

Общий рейтинг:
Лобовой удар со смещением:
Боковой удар:

Легенда: (уровень безопасности)
=Хороший
=Приемлемый
=Посредственный
=Слабый

Audi A3 2.0T

Вес: 3,241 lbs.
Двигатель: 2.0 L turbocharged 4-cylinder

Комплектация:
» Side airbags: front and rear head curtain airbags and front seat-mounted torso airbags (standard); rear seat-mounted torso airbags (optional)
» Antilock brakes
» Electronic stability control

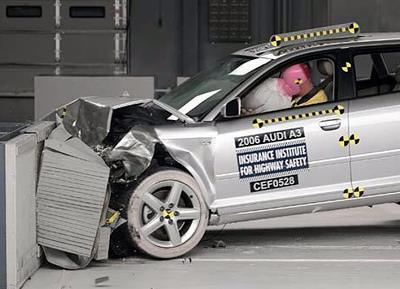

ЛОБОВОЙ УДАР СО СМЕЩЕНИЕМ
Structure/safety cage Injury measures Restraints/dummy kinematics
Head/neck Chest Leg/foot, left Leg/foot, right
Good Good Good Good Acceptable Good

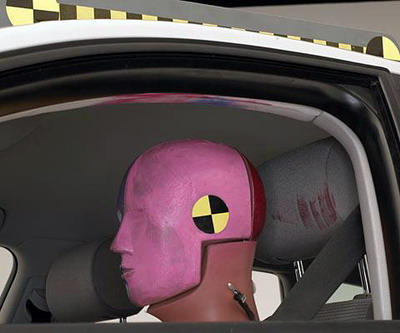

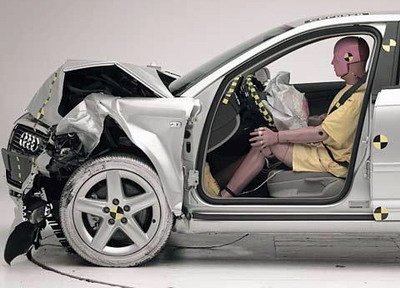

The dummy's position in relation to the steering wheel and instrument panel after the crash test indicates that the driver's survival space was maintained wellSmeared greasepaint above the dummy's head indicates where the head hit the roof rail during rebound. Head acceleration from this hit was low

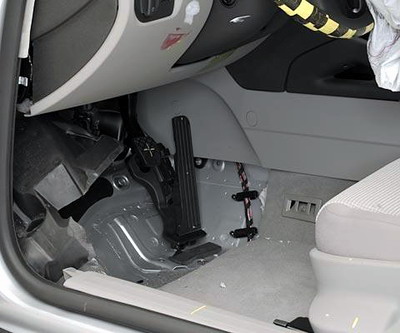

Intrusion into the driver's space was minimal (shown with carpeting removed)

БОКОВОЙ УДАР

  Injury measures Head protection Structure/safety cage
Head/neck Torso Pelvis/leg
Driver Good Good Good Good Good
Rear passenger Good Good Good Good

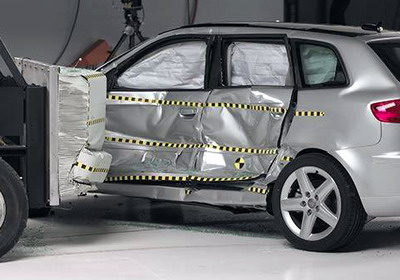

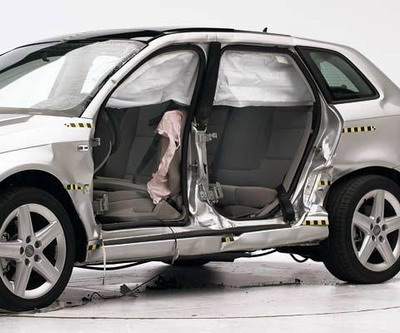

View of the vehicle and barrier just after the crash testView of the vehicle after the crash with doors removed, showing the side airbags and damage to the occupant compartment

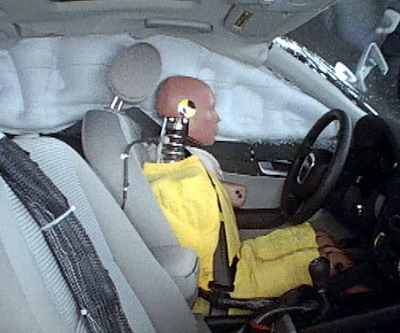

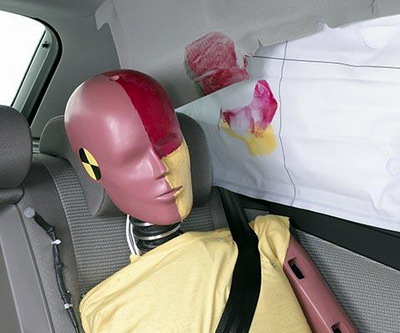

Action shot taken during the side impact crash test showing the driver dummy's head was protected from being hit by hard structures by the side curtain airbagSmeared greasepaint shows where the rear passenger dummy’s head was protected by the side airbag
ЛОБОВОЙ УДАР СО СМЕЩЕНИЕМ
Restraints/dummy kinematics

    Dummy movement was well controlled. During rebound, the dummy’s head hit the roof rail.

Injury measures

    Measures taken from the head, neck, and chest indicate low risk of injuries to these body regions in a crash of this severity. Forces on the right tibia indicate that lower leg injuries would be possible. Head acceleration from the roof rail hit was low.

БОКОВОЙ УДАР

Injury measures

    Driver - Measures taken from the dummy indicate a low risk of any significant injuries in a crash of this severity.
    Rear passenger - Measures taken from the dummy indicate a low risk of any significant injuries in a crash of this severity.

Head protection

    Driver - The dummy's head was protected from being hit by any hard structures, including the intruding barrier, by a side curtain airbag that deployed from the roof.
    Rear passenger - The dummy's head was protected from being hit by any hard structures, including the intruding barrier, by a side curtain airbag that deployed from the roof.
