Краш-тест Acura TSX

Краш-тест Acura TSX

Краш-тест Acura TSX Acura TSX
Модельный год: 2004
Год проведения теста: 2004
Организация, проводившая тест: IIHS (США)

Общий рейтинг:
Лобовой удар со смещением:
Боковой удар:

Легенда:
=Хороший =Приемлемый =Посредственный =Слабый

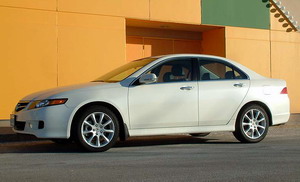

Acura TSX

Вес: 3,278 lbs.
Двигатель: 2.4 L 4-cylinder

Комплектация:
» Боковые подушки: передние и задние занавески для защиты головы; передние подушки для защиты туловища
» ESP
» ABS

ЛОБОВОЙ УДАР СО СМЕЩЕНИЕМ
Структура кузова Уровень защиты Restraints/dummy kinematics
Голова/шея Грудь Голень/стопа, левая Голень/стопа, правая
Good good Good Good acceptable Good

The energy of the crash was absorbed by the front end of the car, preserving the driver's survival space very wellSmeared greasepaint indicates where the dummy's head contacted the B-pillar, roof rail, grab handle, and head restraint during rebound. Head accelerations from these hits were low
Forces on the lower right leg were high enough to indicate the possibility of injury

БОКОВОЙ УДАР

  Injury measures Head protection Structure/safety cage
Head/neck Torso Pelvis/leg
Driver Good good marginal Good marginal
Rear passenger Good Good Good Good

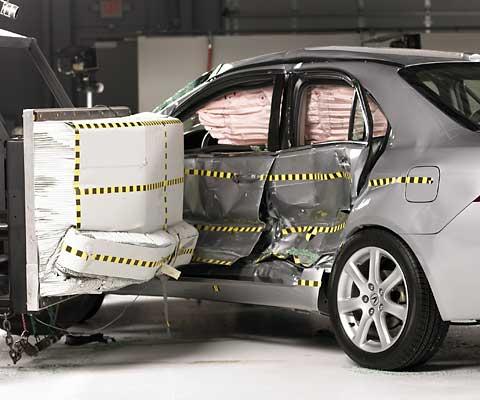

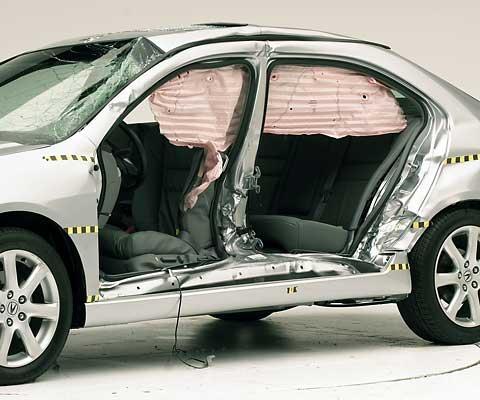

View of the vehicle and barrier just after the crash testView of the vehicle after the crash with doors removed, showing the side airbags and damage to the occupant compartment

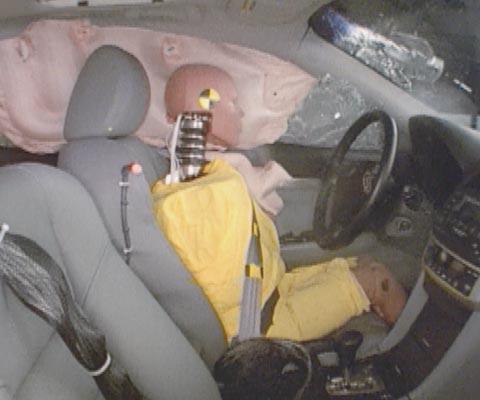

Action shot taken during the side impact crash test showing the driver dummy's head was protected from being hit by hard structures by the side curtain airbagSmeared greasepaint shows where the rear passenger dummy's head was protected by the side airbag
ЛОБОВОЙ УДАР СО СМЕЩЕНИЕМ

    The Acura TSX was introduced in the 2004 model year. Beginning with 2005 models, changes were made to the side curtain and side torso airbags to improve occupant protection in side impact crashes.

Restraints/dummy kinematics

    Dummy movement was well controlled. During rebound, the dummy's head hit the roof rail, grab handle, and B-pillar.

Injury measures

    Measures taken from the head, neck, chest, and left leg indicate low risk of injuries to these body regions in a crash of this severity. Forces on the right tibia indicate that injuries to the lower leg would be possible. Head accelerations from the roof rail, grab handle, and B-pillar hits were low.

БОКОВОЙ УДАР

Injury measures

    Driver - Measures taken from the dummy indicate that a fracture of the pelvis would be possible in a crash of this severity. The risk of significant injuries to other body regions is low.
    Rear passenger - Measures taken from the dummy indicate a low risk of any significant injuries in a crash of this severity.

Head protection

    Driver - The dummy's head was protected from being hit by any hard structures, including the intruding barrier, by a side curtain airbag that deployed from the roof.
    Rear passenger - The dummy's head was protected from being hit by any hard structures, including the intruding barrier, by a side curtain airbag that deployed from the roof.
